Wood Log Loaders trailer Logging Equipment For Sale

Short Description:

zhangsheng Log Trailer is designed for ATV, UTV or Tractors, it can be widely used in small forestry areas or faimly-owned farms. Featured with compact structure, flexibility, convenient operation, quick mounting and dismounting. Owning this log trailer, it will be a pleasant thing to pick up and transport firewoods, bamboos, sugarcanes, logs, tree branches etc.


Product Detail

Product Tags

Overview of log grapple trailer

The timber crane with crane that could be used all year around has been our biggest aim.

Save energy for our Green World is also more and more important.

Thus, you can use the oil pump of your tractor and share some PTO set from your tractor.

Of course, for each conditions use, if the vehicle does not have an oil pump, you replace it with our hydraulic unit that has gasoline engine to give the needed oil pressure so to effectively operate the machine.

Features of log grapple trailer

1

1. Robust Trailer Structure
Strong and firm structure trailer guarantees the big loading capacity.

2. Remote Control Hydraulic Winch
The remote control hydraulic winch is optional. Then, some logs deep in the forest can be towed out. After that, you can use the crane to lift the logs on the trailer. Hydraulic winch is much more powerful and durable than electric one.

2
3

3. Crane with Telescopic Function
Crane with telescopic function is an optional device. After choosing the telescopic crane, the arm reach can be 1m longer than standard crane. you can grab materials which are faraway and unload materials to much higher place.

Specification  of log grapple trailer



Model Light base
RM/TC420L RM/TC500L RM/TC550L RM/TC600L
4.2m 5m 5.5m 6m/a section telescopic arm
Max. Reach (m) 4.2 5 5.5 6
Lifting capacity kgs(4m) 390 580 680 750
Lifting capacity at full reach  (Kg) 370 500 520 500
Slewing torque KN.M 11 11 11 11
Standard grabbing TG20 (Max. open area 1260)
Slewing angle 380° 380° 380° 380°
No. of swing cylinder pcs 2 4 4 4
Working pressure (Mpa) 20 20 20 20
Total weight (excluding legs) (Kg) 560 720 740 760
Grabbing swinging double brakes Yes
Recommend hydraulic oil flow (L/min) 20-30 30-45 40-50 40-50
Standard rotor motor GR-30F(3T Flange)



Log trailer
Model TR-20 TR-50 TR-80 TR-100
loading capacity  (t) 2 5 8 10
Matching tractor power (HP) 20-50 50-60 70-80 80-100
Total Weight (Kg) 400 1200 1750 1980
Loading section (㎡) 0.8 1.6 2.3 2.6
Total length (m) 4 5.1 6 6
Trailer loading length (m) 2.8 3.1 3.8 4.3
Total width (m) 1.4 1.8 2.2 2.2
NO. of tires 4 4 4 4
Tire specifications 26*12-12(300/65-12) 10/75-15.3 400/60-15.5 400/60-15.5

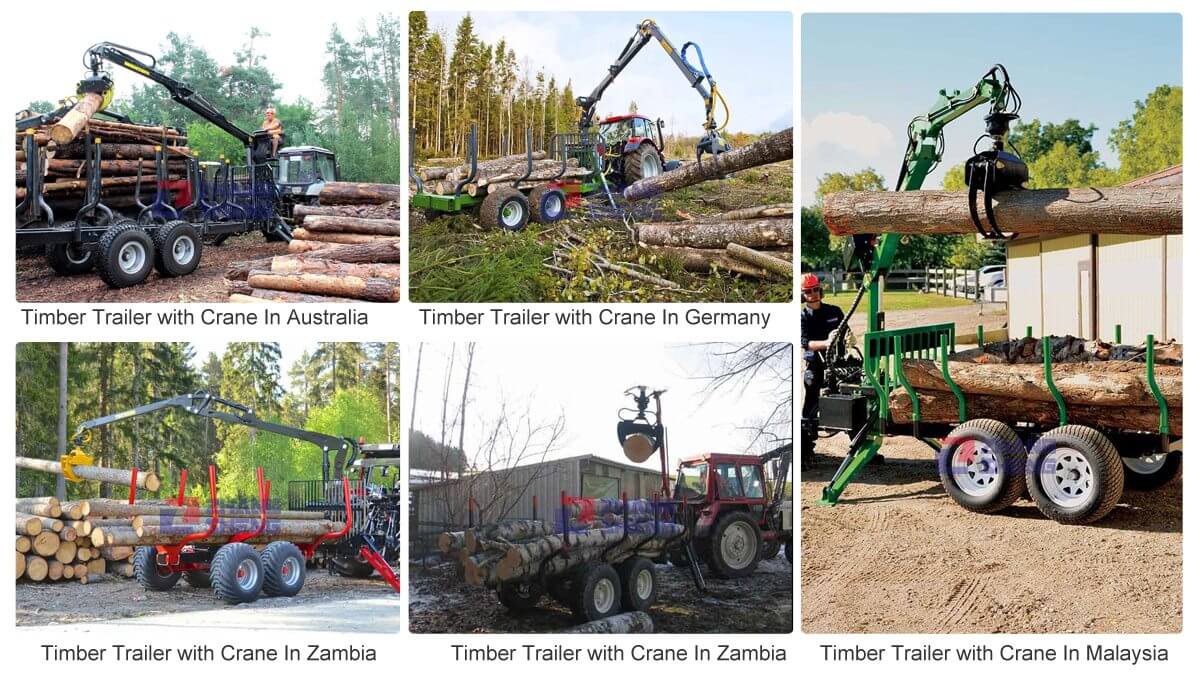

CASE of log grapple trailer

We have 20 years’ experience in Log Trailer, our products have been exported to more than 50 countries and help our dealers wins from fierce competition and gain a good reputation.

FAQ  of log grapple trailer

Q1: What's the lead time?

A:  Our production are made according to orders. In normal conditions, we can deliver within 20 days since deposit time.

Q2: What's the warranty period?

A: Warranty period is 12 months.
